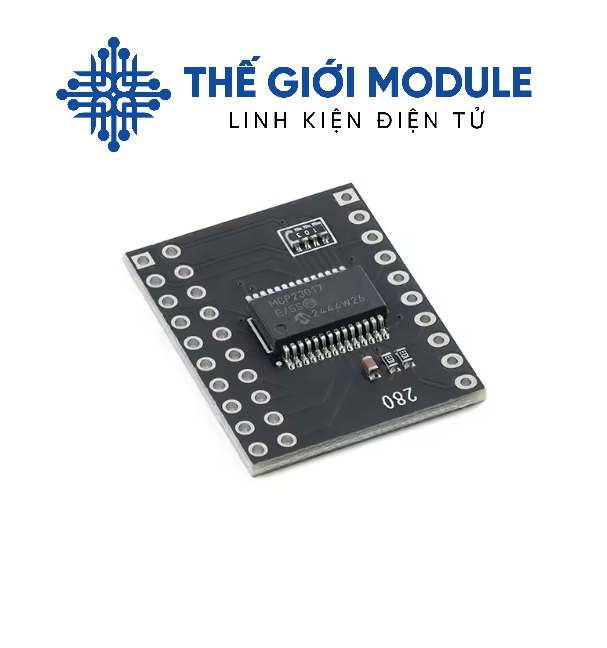

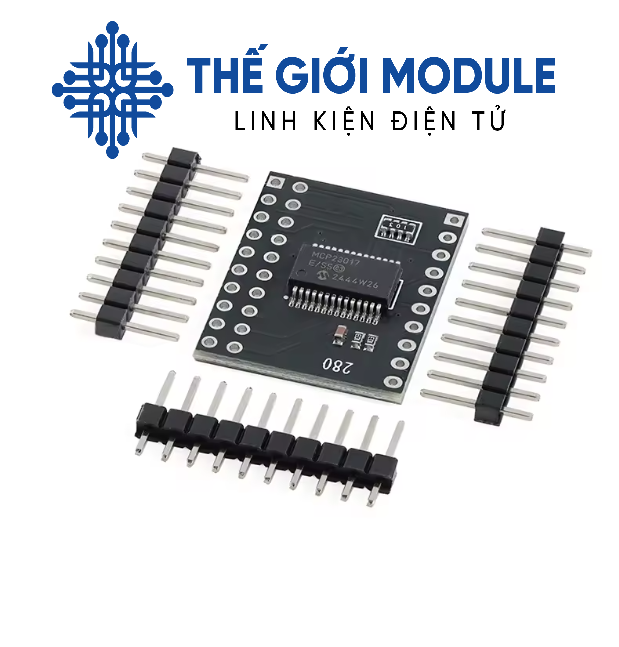

Module Mở Rộng I/O Giao Tiếp I2C MCU-2317 MCP23017

MCU-2317 MCP23017 là một mạch được sử dụng để mở rộng chân giao tiếp I/O của Vi điều khiển thông qua giao tiếp I2C, mạch có khả năng mở rộng lên đến 16 I/O giúp bạn giao tiếp được với nhiều thiết bị chỉ qua một vài bước thiết đặt đơn giản.

Thông số kỹ thuật:

- IC chính: MCP23017

- Điện áp hoạt động : 1.8~5.5VDC

- Giao tiếp : I2C

- Số chân giao tiếp mở rộng: 16 I/O

- Tần số giao tiếp:

  100 kHz

  400 kHz

  1.7 MHz

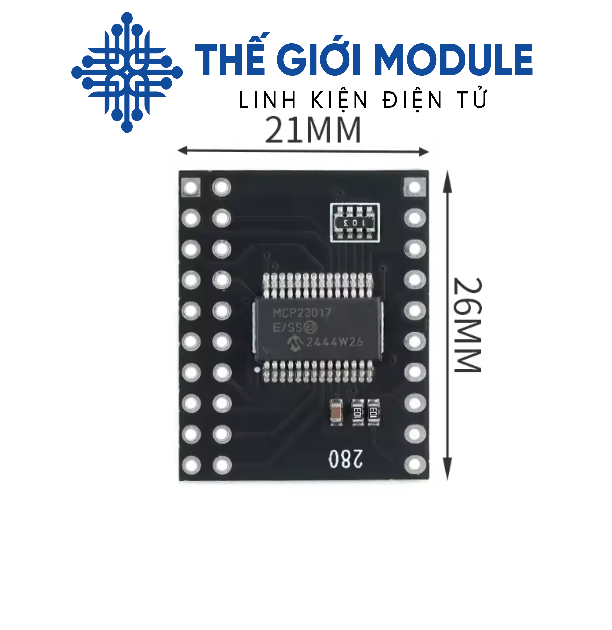

- Kích thước: 21 x 26.5mm

MCP23017 16-BIT I/O Expander Serial I2C Interface Module Add another 16 pins to your microcontroller . The MCP23017 uses two i2c pins (these can be shared with other i2c devices), and in exchange gives you 16 general purpose pins. You can set each of 16 pins to be input, output, or input with a pull-up. There’s even the ability to get an interrupt via an external pin when any of the inputs change so you don’t have to keep polling the chip. Use this chip from 2.7-5.5V (good for any 3.3V or 5V setup), and you can sink/source up to 20mA from any of the I/O pins so this will work for LEDs and such.

• I²C Write Interface : – The I²C write operation includes the control byte and register address sequence. This sequence is followed by eight bits of data from the master and an Acknowledge (ACK) from the MCP23017. The operation is ended with a Stop (P) or Restart (SR) condition being generated by the master. Data is written to the MCP23017 after every byte transfer. If a Stop or Restart condition is generated during a data transfer, the data will not be written to the MCP23017.
• I²C Read Interface :- I²C Read operations include the control byte sequence. This sequence is followed by another control byte (including the Start condition and ACK) with the R/W bit set (R/W = 1). The MCP23017 then transmits the data contained in the addressed register. The sequence is ended with the master generating a Stop or Restart condition

Features:

- 16-Bit I/O Expander IIC I2C SPI Serial Interface Module MCP23017

- 6-Bit Remote Bidirectional I/O Port

- I/O pins default to input

- High-Speed I2C Interface (MCP23017): 100​​kHz, 400kHz, 1.7MHz

- High-Speed SPI Interface (MCP23S17): 10 MHz (maximum)

- Three Hardware Address Pins to Allow Up to Eight Devices On the Bus

- Configurable Interrupt Output Pins: Configurable as active-high, Active-low or open-drain

- INTA and INTB Can Be Configured to Operate Independently or Together

- Configurable Interrupt Source: Interrupt-on-change from configured register defaults or pin changes

- Polarity Inversion Register to Configure the Polarity of the Input Port Data

- External Reset Input

- Low Standby Current: 1 μA (max.)
