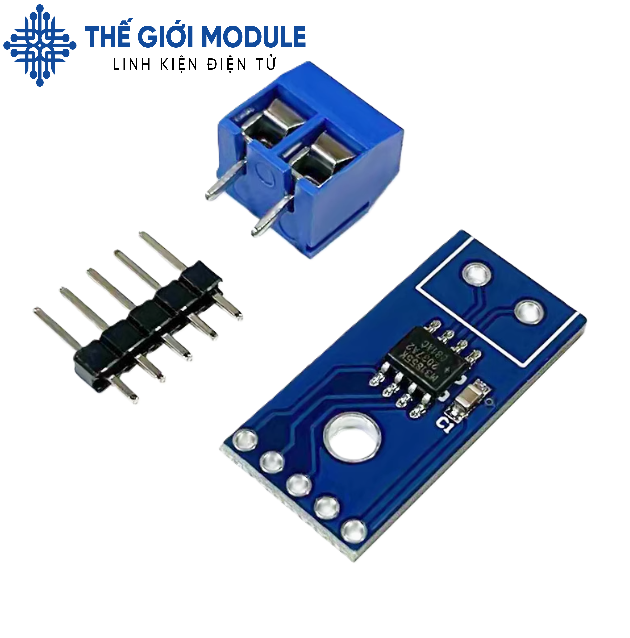

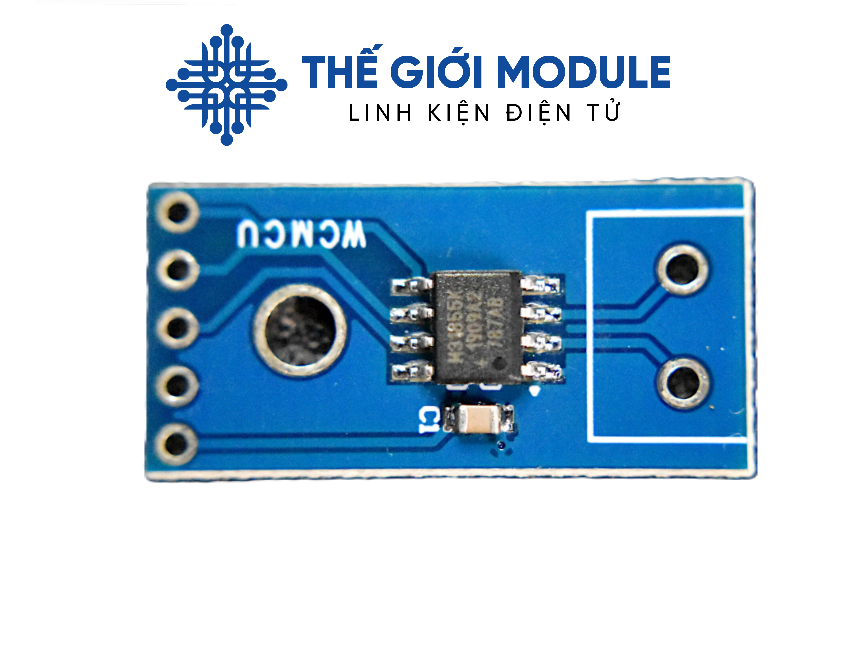

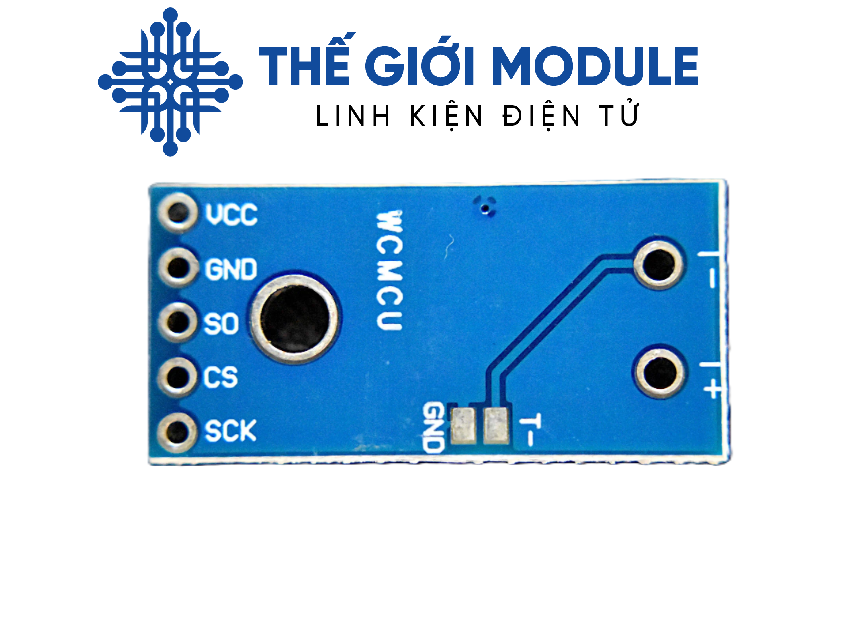

MAX31855 có tính năng bù điểm lạnh và chuyển đổi tín hiệu cặp nhiệt điện loại K, J, N, T hoặc E thành tín hiệu số. Thiết bị xuất dữ liệu có dấu 14 bit ở định dạng chỉ đọc thông qua giao diện tương thích SPI™. Bộ chuyển đổi có độ phân giải nhiệt độ 0,25°C và có thể đọc nhiệt độ đến +1800°C và -270°C. Đối với cặp nhiệt điện loại K, phạm vi nhiệt độ từ -200°C đến +700°C, duy trì độ chính xác ±2°C.
MAX31855K has cold junction compensation, which converts K, J, N, T or E thermocouple signals into digital quantities. The device outputs 14 bit signed data in read-only format through spitm compatible interface. The temperature resolution of the converter is 0.25 ℃, the temperature reading is + 1800 ℃, and the temperature reading is - 270 ℃. For K-type thermocouple, the temperature range is - 200 ℃ to + 700 ℃ ± 2 ℃ accuracy.
- Voltage Input : 3.3v
- With cold port compensation
- Convert K, J, N, T or E-type thermocouple signal into digital data
- Output 14Bit data
- Resolution: 0.25°C
- Highest Temperature: +1800°C
- Lowest Temperature: -270°C
- For K-type thermocouple, temperature range -200°C~+700°C, +/-2°C precision
