Kit ESP32 Bluetooth WIFI OLED 0.96inch V3

Thương hiệu: HelTec AutoMation

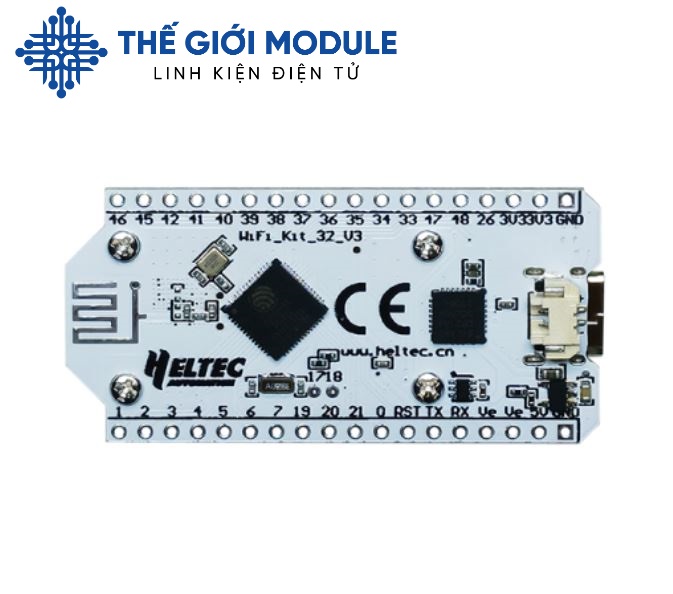

WiFi Kit 32 (V3) is a classic IoT development board. It’s a highly integrated product based on ESP32(including WiFi and BLE), Li-Po battery management system, 0.96” OLED are also included. It’s the best choice for smart cities, farms homes and IoT makers

Features:

1. Microprocessor: ESP32-S3FN8 (Main frequency up to 240 MHz)

2. Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures

3. Onboard SH1.25-2 battery interface, integrated lithium battery management system

4. Onboard Wi-Fi, Bluetooth 2.4GHz PCB antenna

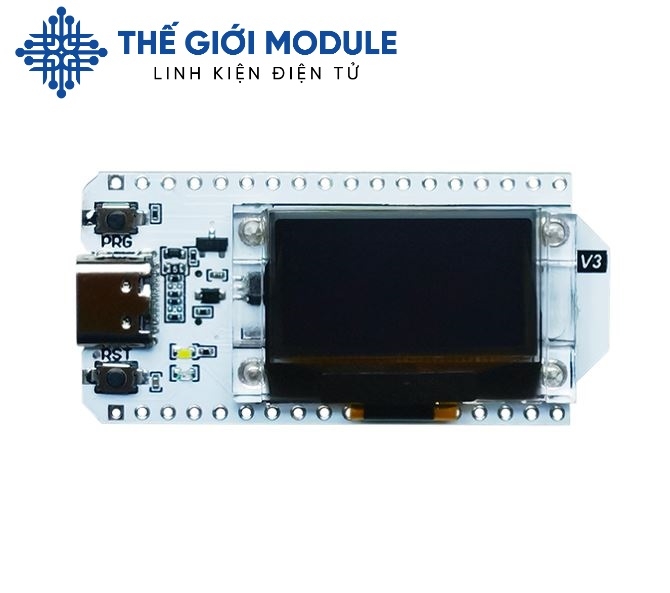

5. Onboard 0.96-inch 128*64 dot matrix OLED display, which can be used to display debugging information, battery power and other information

6. Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing

7. Support the Ar duino development environment

Parameter:

- WiFi: 802.11 b/g/n, up to 150Mbps

- Bluetooth: Bluetooth LE, Bluetooth 5, Bluetooth mesh

- Hardware Resource: 7*ADC1+2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI, etc.

- Memory: 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash

- Interface: Type-C USB; 2*1.25 lithium battery interface; 2*18*2.54 Header Pin

- Battery: 3.7V lithium battery power supply and charging

- Power consumption: Deep sleep 10 uA

- Operating temperature: -20~70℃

- Dimensions: 50.2 * 25.5* 10.2 mm
