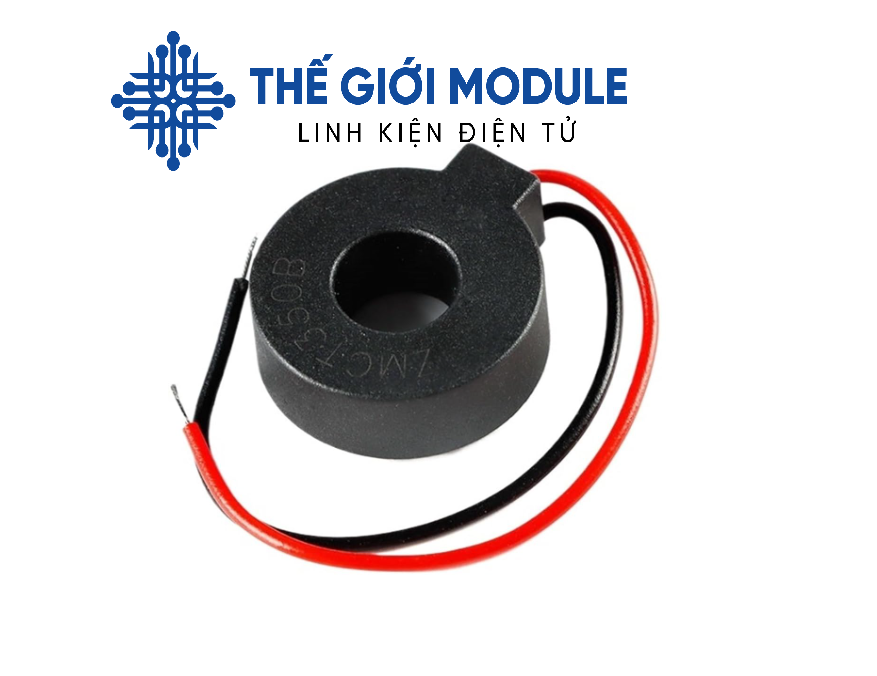

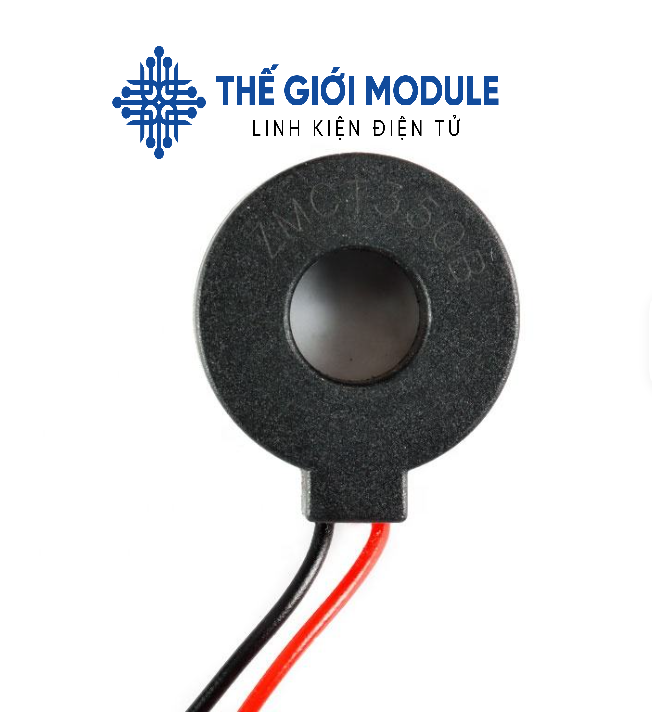

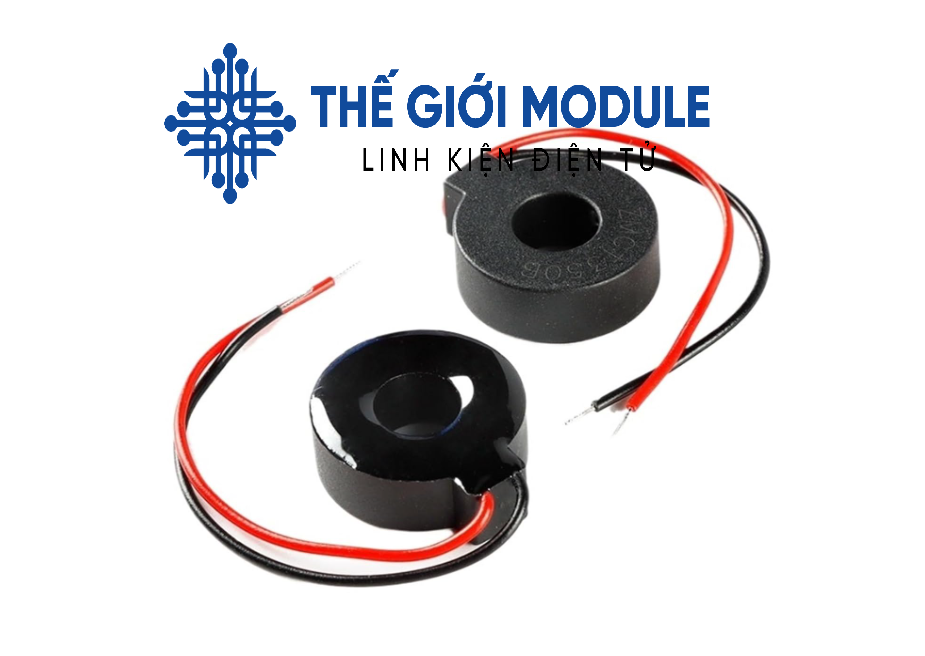

Cảm biến dòng ZMCT350B 5A/5mA

Thông số kĩ thuật:

- Model    ZMCT350B(ClassB)

- Rated input current    5A

- Rated output current    5mA

- turns ratio    1000:1

- phase angle error    ≤30'(input 10A,sampling resistor 100Ω)

- linear range    0~10A(sampling resistor 100Ω)

- linearity    0.5%(20%dot~120%dot)

- Ratio error    -0.5%≤f≤+0.5%(input 10A,sampling resistor 100Ω)

- isolation voltage    3000V

- Application    measurement

- Encapsulation    Epoxy installation

- Output leads installation operating temperature     -40ºC~+85ºC
